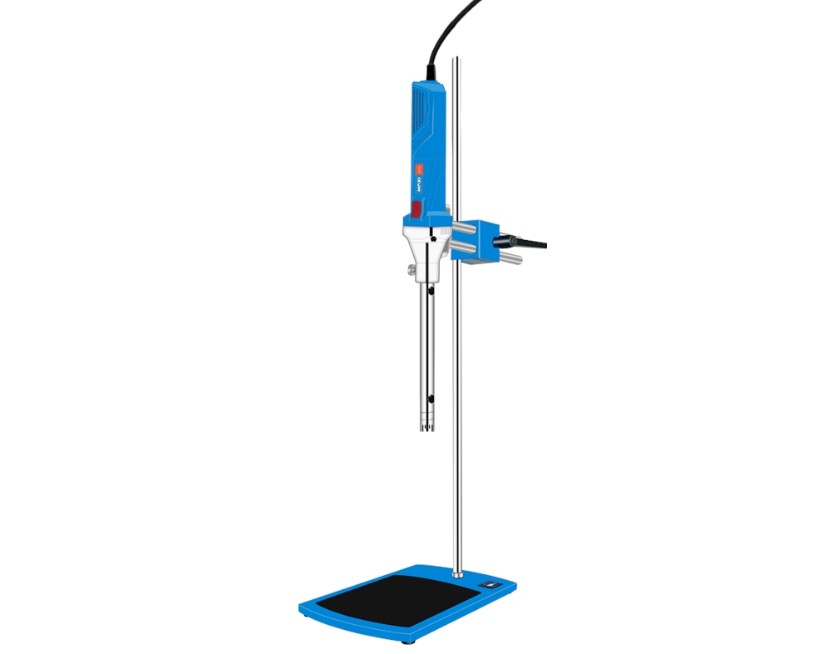

Laboratory Homogenizer HR-25

1700W peak power output, 27m/s line speed to achieve nano-level dispersion
7,500-30,000 RPM continuously adjustable (basic model with 6 presets)

Cat.#HR-25

Product Description

Application:

● KB-25 laboratory homogeneous emulsifier is a mechanical equipment specially designed for sample homogeneous emulsification. It can be equipped with a variety of working heads of different specifications to quickly realize sample dispersion, homogenization, emulsification, suspension, stirring, etc. At present, it has been widely used in biological animal and plant tissue cells, medicine, cosmetics, food, medicine, chemical industry and many other fields.


Main Features:

●A variety of working heads of different specifications to meet the processing capacity of 2~10L;

● 0~999min timing range, the instrument stops automatically after the operation is over;

● With 1~6 gears, the speed can be adjusted, which is suitable for different sample processing requirements;

● With LCD digital display function, the speed, time and sample temperature are clear to show;

● High-performance brushless motor, strong and efficient, stable operation, low noise, long life, can run for a long time;

● Stepless speed regulation function, the max speed can reach 34000rpm, providing a linear speed of 27m/s for sample homogenization;

● Two-way support rod design combined with double-hole fixing clips to form an integrated lifting adjustment system to make your experiments more reliable and safer;

● The digital display model can be equipped with a temperature sensor to measure the temperature of the sample in real time. When it reaches the set value, it will automatically stop running, making the experiment safe and secure.

Technical Parameters


Model

KB-25

Item No

1004023000

Type

Basic

Rated Voltage (V)

200-240(optional 110V)

Frequency

50-60HZ

Rated Input Power

1500W

Rated Output Power

1250W

Max Input Power

2300w

Max Output Power

1700w

Motor type

DC Brushless motor

Speed range

7500-30000rpm

Speed control

gear

Capacity

0.2-10000ml

Set Standard

Machine+working head+stand

Standard working head

KB25 25g-S2V

Machine Size

410*90mm

Machine packing Size

470*340*205mm

Machine NW

2.6KG

Machine GW

3KG

Set NW

7KG

Set GW

8KG
