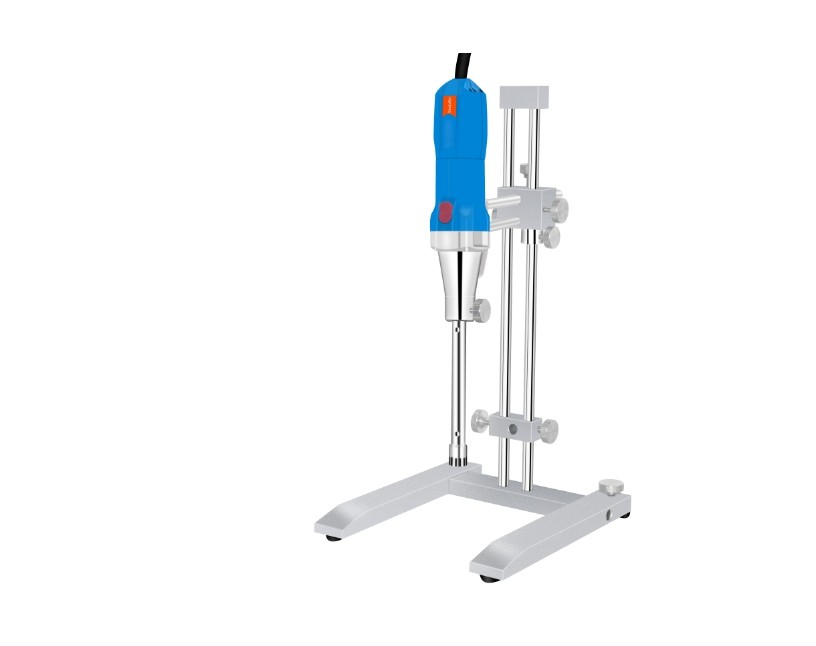

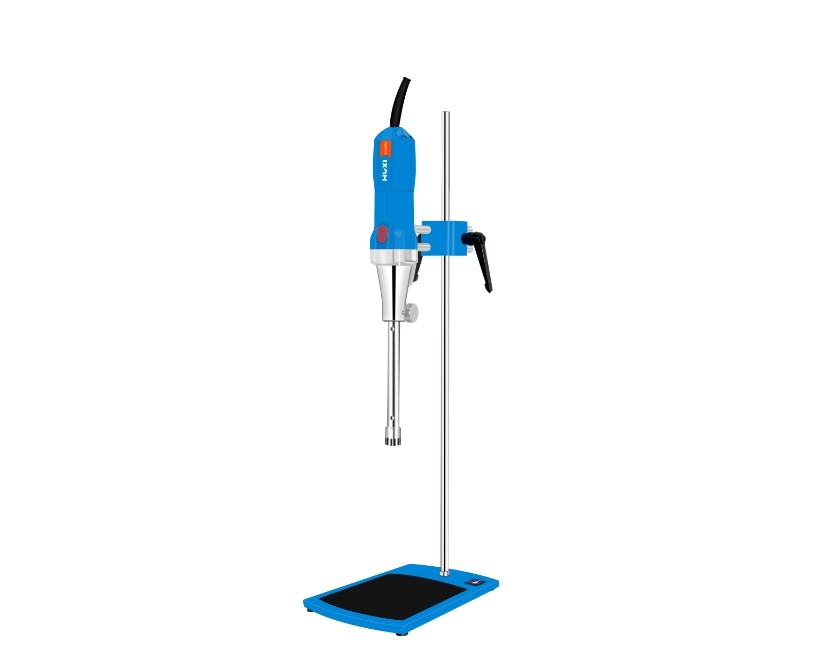

High Shear Homogenizer KB-500

20 special cutter heads to suit different containers and working conditions (switching time < 5 seconds)

Cat.#KB-500

Product Description

Application:

The laboratory high-shear dispersing emulsifier is dexterous and convenient. Can be operated by hand. High-quality motors are used for more stable operation and lower noise. It can be operated for a long time, a variety of working heads are available, vacuum operation can be realized, and a variety of high-demand dispersion, emulsification, and homogenization experimental requirements can be easily met.


Main Features:

1. Use high-quality motors, stable operation, lower noise, long-term operation, safe and reliable design.

2. All parts of the working head contacting materials are made of high-quality stainless steel with good corrosion resistance.

3. The working head is connected with the drive motor by a coupling, which is easy to disassemble and assemble.

4. The speed control frame with step less speed governor, which is convenient for speed control and stable operation.


Technical parameters


Model

KB-500

Rotary Speed

10000-31000r/min

Capacity

0.2-7000ml (H2O)

Standard Head

25G

Input Power

500W

Output Power

320W

Rotary Speed Display

Graduate Display

Speed Mode

Gear speed regulation

Head Material

316L Stainless steel

Bearings Material

PTEE

proper temperature

≤120C°

Allowable ambient temperature

5-40C°

  Allowable relative     humidity  80%

Process type

Micro batch processing

 Host net Weight   3kg
 Power supply  AC 220V 50~60HZ

  Host size (length x diameter)

   275×φ65mm

Host packing size

470×340×205mm

Host GW

4kg
