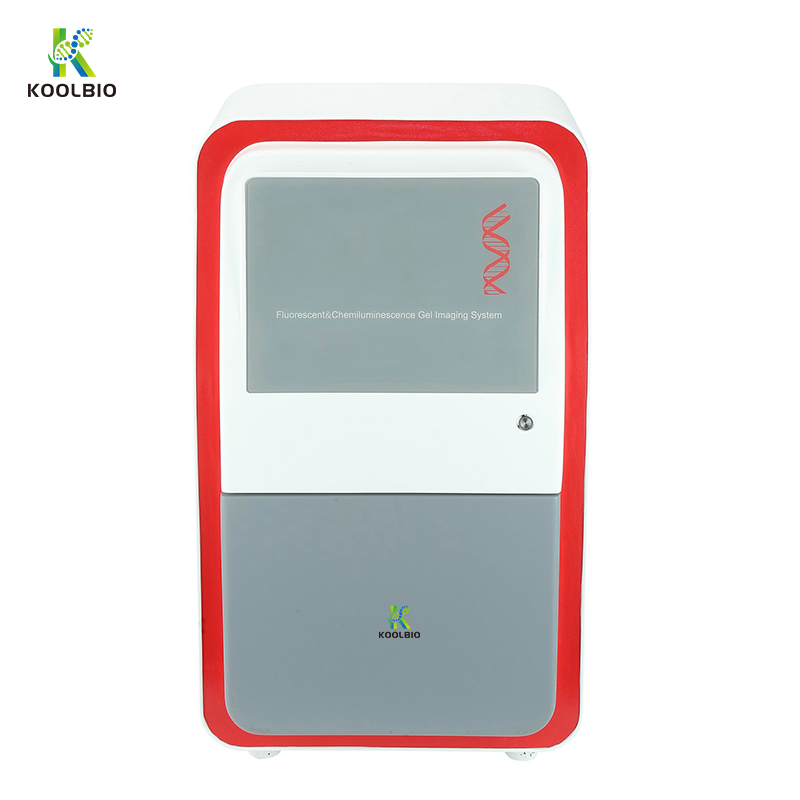

Fully automatic multifunctional imaging system KB-K3600

Product Introduction

KB-K3600 is a fully automatic multifunctional imaging system that integrates gel imaging, chemiluminescence and bioluminescence imaging. It is equipped with a white light transmission plate for the detection and analysis of digital images of protein and DNA samples in gels and membranes. KB-K3600 Chemiluminescence Imaging System

Features

Adopt the latest generation of refrigerated industrial camera, 9 million pixels (optional 23.65 million pixels)

Equipped with F/0.95 large aperture fixed focus lens, (optional F/0.8 lens)

Standard drawer-type double-position loading and focusing platform, optional computer-controlled loading and lifting platform

Users can set the timer to automatically turn off the light source (0-60 minutes)

Anti-scatter sample stage minimizes the effects of light scattering

Dark box with overhead white light source
